Module

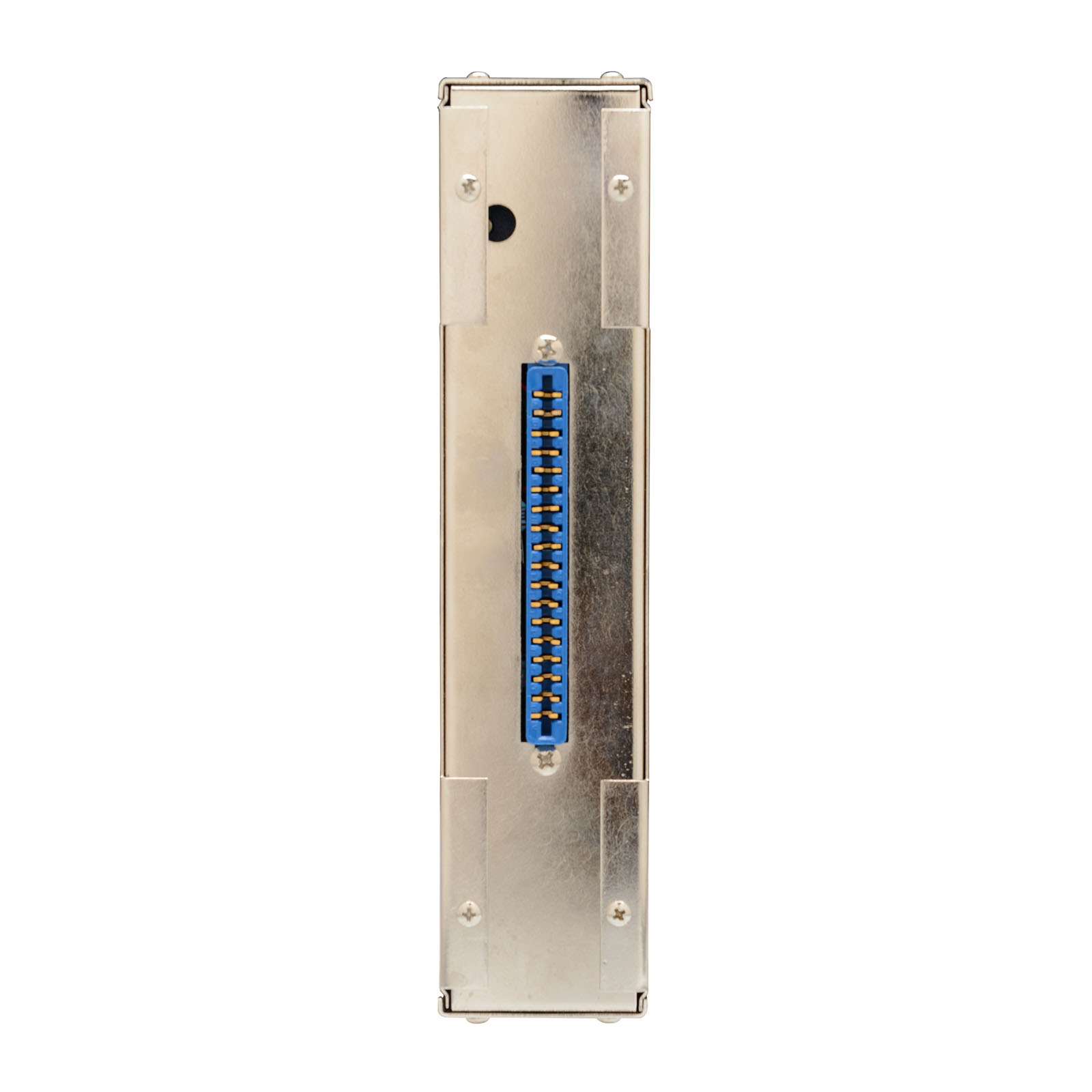

Module Back

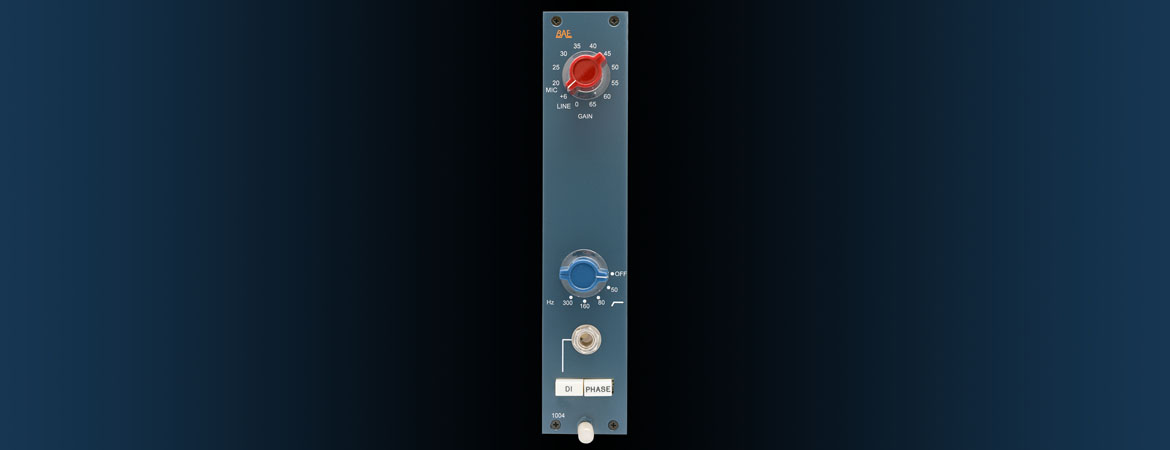

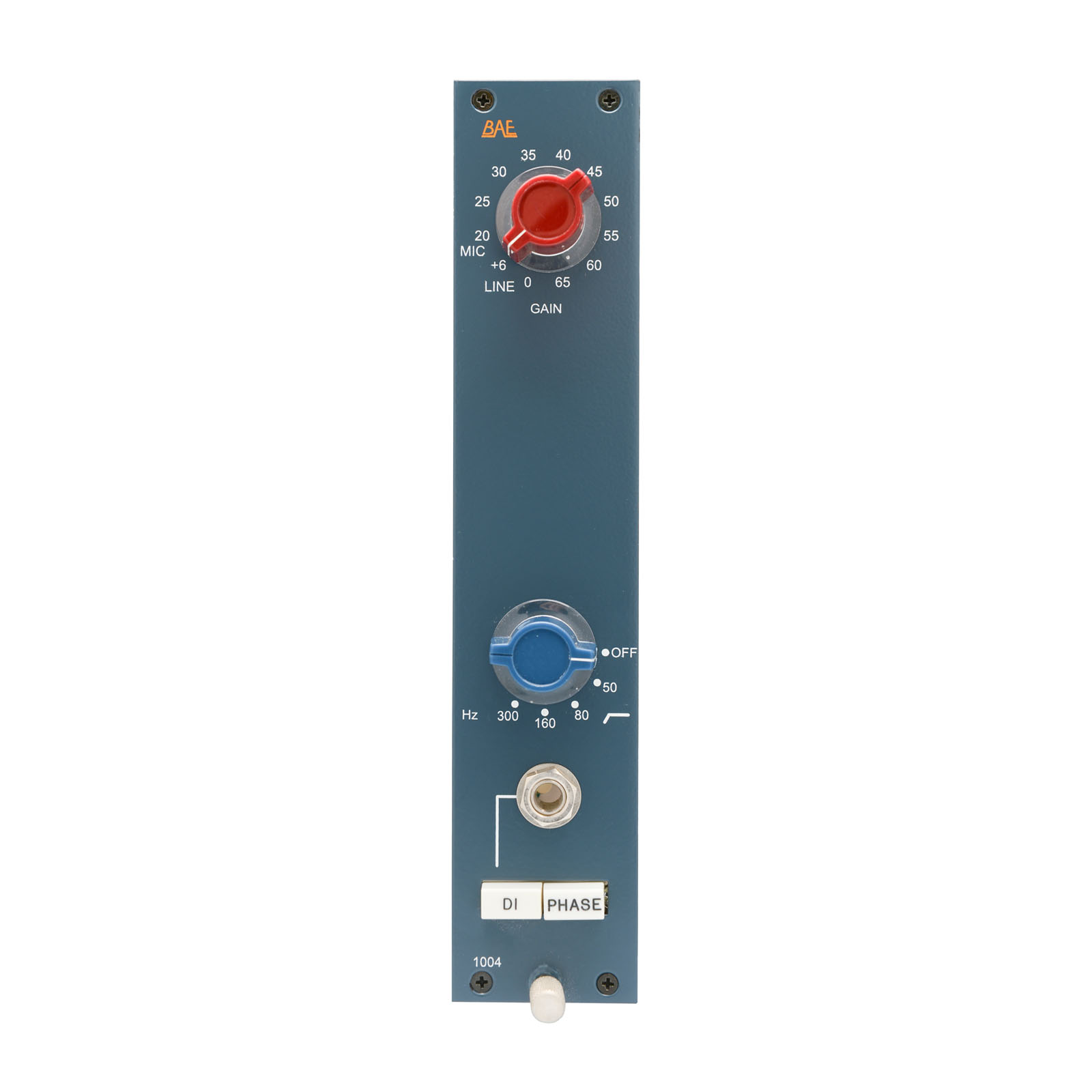

1004 Module



"The BAE 1073 is our go to Pre for everything. We track vocals, guitars, drums, synths etc. and it beats out any other amp in our arsenal! Simply the BEST."


Tony Ghantous and Brett Epstein "Contagious Songs"
Producers/Songwriters

1004 Features

The BAE 1004 is a 10 series mic pre with filter.

The 1004 features the same mic pre-amp as the 1073 with 70db of gain as well as the same inductor based hi pass filter as the 1073.

The 1004 comes with a phase switch and DI for line instruments.

  • DI for line instruments.
  • High Pass Filter: 18dB per octave slope, switchable between 50Hz, 80Hz, 160Hz & 300Hz

1004 Module MAP: $1500.00


BAE Anniversary

High Pass Filter
50Hz, 80Hz, 160Hz & 300Hz

Mic Input Impedance
≈1200/300 ohms

Line Input Impedance
10k ohms

DI Input Impedance
≈150k ohms

Equivalent Input Noise
-110 dBu; Unweighted 300kHz Bandwidth

Dimensions in Inches
45 mm W x 8.75 inches H x 10.5 inches D
