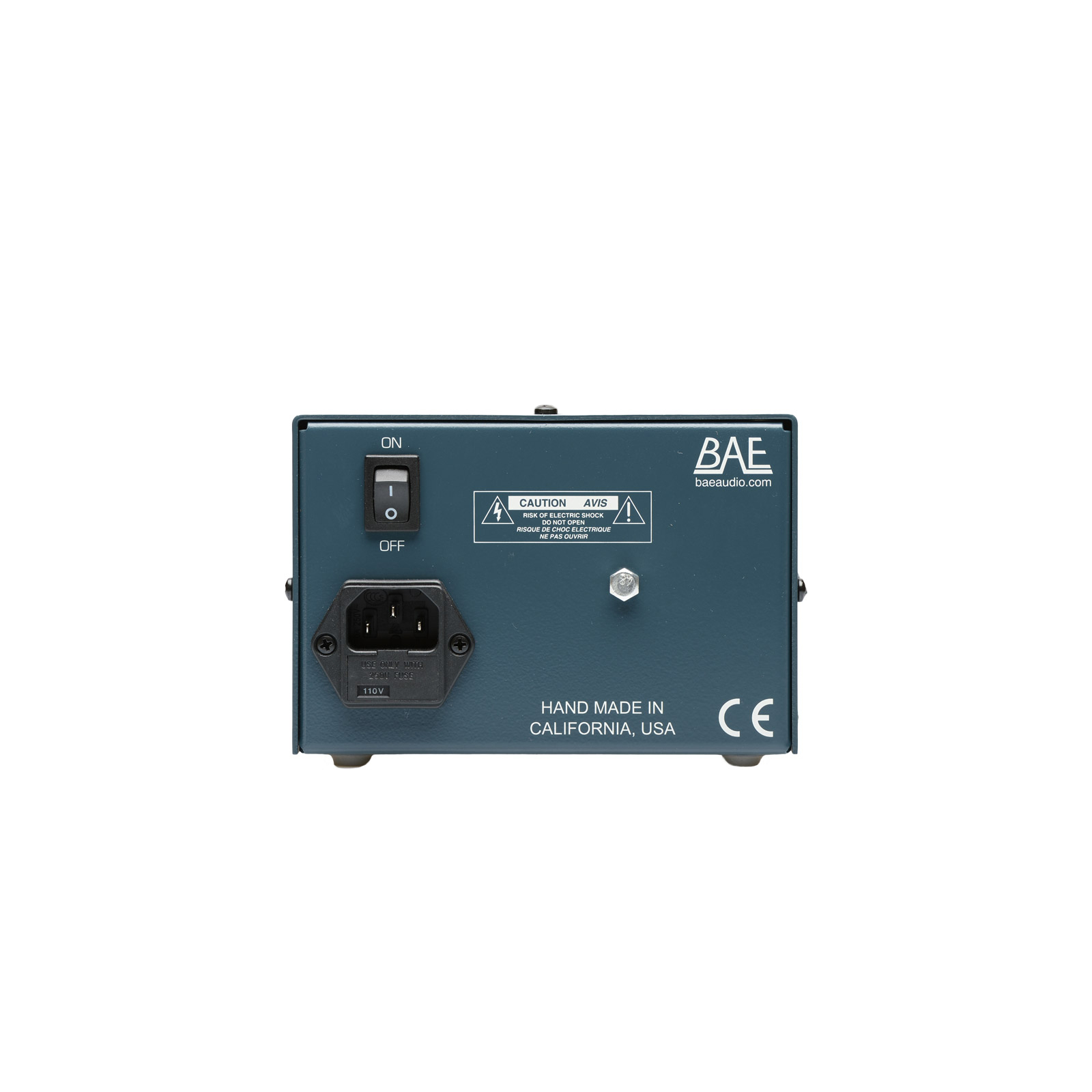

24V PSU Back

1084 Rackmount & Module



"They just are the best. Big, robust, musical, dependable, and amazing - empirically. BAE won me over and we've never looked back. Thank you for helping our success!"


Mark Kondracki
Principal - Outloud Audio


1084 Features

The BAE 1084 is as authentic as you can get to the original, featuring the same St Ives (Carnhill) transformers as the vintage modules, Elma switches and Canford wire.

The BAE 1084 looks identical to the original vintage module and will happily retrofit in vintage Neve 80 Series consoles because the entire product is engineered in exactly the same way as the originals: the same chassis construction, connectors, printed circuit board layouts, hand-wired looms, and circuitry.

  • High Frequency: +/-16dB shelving with selectable frequencies of 10kHz, 12kHz and 16kHz
  • Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz.
  • Mid Range: +/-12dB or +/-18dB peaking with switchable 'High Q', selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz.
  • High Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz & 360Hz
  • EQ Button: Switches the equaliser on or off
  • Phase Button: 180°

1084 19" 1RU rack w/power supply MAP: $3,535.00
1084 19" 1RU rack w/out power supply MAP: $3,335.00
1084 19" pair w/power supply MAP: $6,870.00
1084 Module MAP: $3,150.00
1084 Black Faceplate Option: Add $50.00

Frequency Response
10Hz to -3dB at 55kHz

3 Band Equaliser
HF:+/-16dB fixed frequency shelving at 10kHz, 12kHz and 16kHz
LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
MF: +/-18dB peaking, fixed 'Q' with, selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz

High Pass Filter
50Hz, 80Hz, 160Hz & 300Hz

Low Pass Filter
6kHz, 8kHz, 10kHz, 14kHz, & 18kHz

Mic Input Impedance
≈1200/300 ohms

Line Input Impedance
10k ohms

DI Input Impedance
≈150k ohms

Output Impedance
65 ohms

Common Mode Rejection Ratio
100dB min @ 60Hz

Maximum Output Level
+27.4 dBu @ 600Ω

Power Requirements
115/230 VAC, 28W

Gain dB
0 to 80 dB

Equivalent Input Noise
-110 dBu; Unweighted 300kHz Bandwidth

Weight (Module/Rackmount)
6 LBS/2.72 KG
10 LBS/4.54 KG

Dimensions in Inches (Module/Rackmount)
45 mm W x 8.75 inches H x 10.5 inches D
19W x 1.75L x 9D
